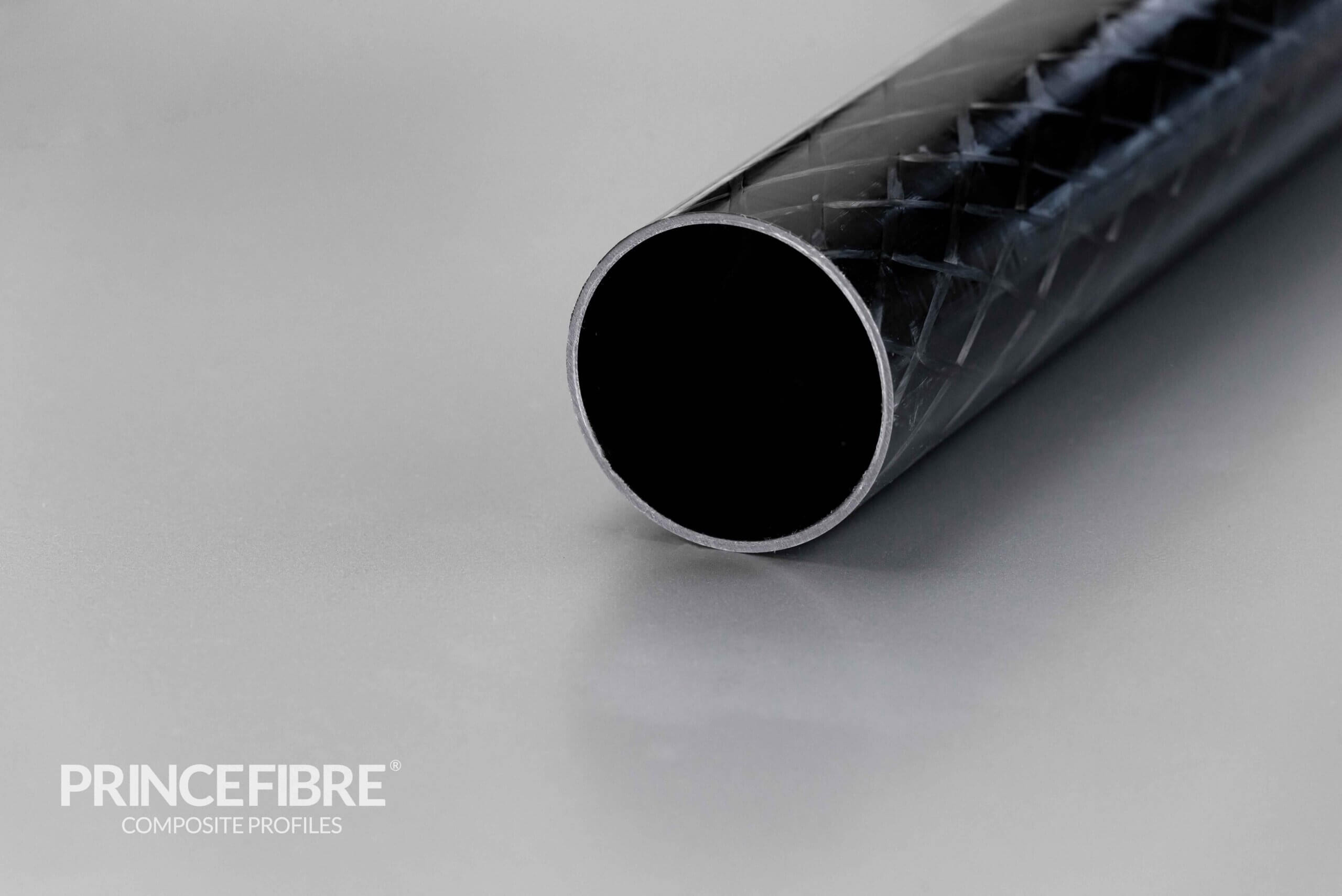

Tube 60×56 mm carbon-epoxy

€98.00 /meter (excl. VAT)

Expected delivery time: Max 5 days

Braiding: 80% unidirectional in 0 degree direction; 10% internal wrap in 90 degree direction; 10% external braid in 30 degree direction

€0.00
Sawing it for free?

Calculate the deflection here

Tube 60×56 mm carbon-epoxy
Indicative calculation. No account has been taken of fracture or failure load. No rights can be derived from the outcome.
Tube 60×56 mm carbon-epoxy
Indicative calculation. No account has been taken of fracture or failure load. No rights can be derived from the outcome.
Tube 60×56 mm carbon-epoxy
Indicative calculation. No account has been taken of fracture or failure load. No rights can be derived from the outcome.
Tube 60×56 mm carbon-epoxy
Indicative calculation. No account has been taken of fracture or failure load. No rights can be derived from the outcome.
Click to calculate
Click to calculate
Click to calculate
Click to calculate
SKU: CT06056.6
EAN: 6096123823811
Category:
Weight: 3.414 kg
Outside size: 60 mm
Inner size: 56 mm
Wall thickness: 2 mm
Appearance: Pullbraiding
Resin: Epoxy
Download technical datasheet
